Included schema PvSystem.xsd
Namespace http://www.iepmodel.net
Properties
attribute form default: unqualified
element form default: unqualified
Element PvSystemType / ApplicationReferenceId
Namespace No namespace
Annotations
ID of the object represented by this XML rewithin a  corresponding software application. Used by the software to identify its corresponding record within the application's database. AKA a primary key. Important if the data is passed from one application back to an originating application, for example.
Diagram
Diagram Common_xsd.tmp#ApplicationIdType_IdValue Common_xsd.tmp#ApplicationIdType_IdSource Common_xsd.tmp#ApplicationIdType
Type ApplicationIdType
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Model IdValue , IdSource
Children IdSource, IdValue
Instance
<ApplicationReferenceId>
  <IdValue>{1,1}</IdValue>
  <IdSource>{1,1}</IdSource>
</ApplicationReferenceId>
Source
<xs:element minOccurs="0" name="ApplicationReferenceId" type="ApplicationIdType" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>ID of the object represented by this XML rewithin a corresponding software application. Used by the software to identify its corresponding record within the application's database. AKA a primary key. Important if the data is passed from one application back to an originating application, for example.</xs:documentation>
  </xs:annotation>
</xs:element>
Element PvSystemType / Name
Namespace No namespace
Diagram
Diagram
Type xs:string
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<xs:element minOccurs="0" name="Name" type="xs:string" maxOccurs="1"/>
Element PvSystemType / Description
Namespace No namespace
Diagram
Diagram
Type xs:string
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<xs:element minOccurs="0" name="Description" type="xs:string" maxOccurs="1"/>
Element PvSystemType / ModuleDefinition
Namespace No namespace
Annotations
Specifications for a PV module used in this design. A PvDesign may contain more than PV module make and model.

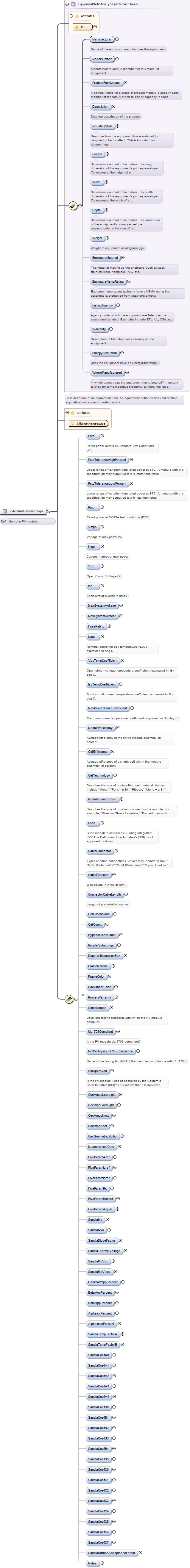

Diagram
Diagram Common_xsd.tmp#EquipmentDefinitionType_Id Common_xsd.tmp#EquipmentDefinitionType_Manufacturer Common_xsd.tmp#EquipmentDefinitionType_ModelNumber Common_xsd.tmp#EquipmentDefinitionType_ProductFamilyName Common_xsd.tmp#EquipmentDefinitionType_Description Common_xsd.tmp#EquipmentDefinitionType_MountingStyle Common_xsd.tmp#EquipmentDefinitionType_Length Common_xsd.tmp#EquipmentDefinitionType_Width Common_xsd.tmp#EquipmentDefinitionType_Depth Common_xsd.tmp#EquipmentDefinitionType_Weight Common_xsd.tmp#EquipmentDefinitionType_EnclosureMaterial Common_xsd.tmp#EquipmentDefinitionType_EnclosureNemaRating Common_xsd.tmp#EquipmentDefinitionType_ListingAgency Common_xsd.tmp#EquipmentDefinitionType_Warranty Common_xsd.tmp#EquipmentDefinitionType_EnergyStarRated Common_xsd.tmp#EquipmentDefinitionType_WhereManufactured Common_xsd.tmp#EquipmentDefinitionType PvSystem_xsd.tmp#PvModuleDefinitionType_Pstc PvSystem_xsd.tmp#PvModuleDefinitionType_PstcToleranceHighPercent PvSystem_xsd.tmp#PvModuleDefinitionType_PstcToleranceLowPercent PvSystem_xsd.tmp#PvModuleDefinitionType_Pptc PvSystem_xsd.tmp#PvModuleDefinitionType_Vmpp PvSystem_xsd.tmp#PvModuleDefinitionType_Impp PvSystem_xsd.tmp#PvModuleDefinitionType_Voc PvSystem_xsd.tmp#PvModuleDefinitionType_Isc PvSystem_xsd.tmp#PvModuleDefinitionType_MaxSystemVoltage PvSystem_xsd.tmp#PvModuleDefinitionType_MaxSystemCurrent PvSystem_xsd.tmp#PvModuleDefinitionType_FuseRating PvSystem_xsd.tmp#PvModuleDefinitionType_Noct PvSystem_xsd.tmp#PvModuleDefinitionType_VocTempCoefficient PvSystem_xsd.tmp#PvModuleDefinitionType_IscTempCoefficient PvSystem_xsd.tmp#PvModuleDefinitionType_MaxPowerTempCoefficient PvSystem_xsd.tmp#PvModuleDefinitionType_ModuleEfficiency PvSystem_xsd.tmp#PvModuleDefinitionType_CellEfficiency PvSystem_xsd.tmp#PvModuleDefinitionType_CellTechnology PvSystem_xsd.tmp#PvModuleDefinitionType_ModuleConstruction PvSystem_xsd.tmp#PvModuleDefinitionType_BIPV PvSystem_xsd.tmp#PvModuleDefinitionType_CableConnector PvSystem_xsd.tmp#PvModuleDefinitionType_CableDiameter PvSystem_xsd.tmp#PvModuleDefinitionType_ConnectorCableLength PvSystem_xsd.tmp#PvModuleDefinitionType_CellDimensions PvSystem_xsd.tmp#PvModuleDefinitionType_CellCount PvSystem_xsd.tmp#PvModuleDefinitionType_BypassDiodeCount PvSystem_xsd.tmp#PvModuleDefinitionType_ParallelSubstrings PvSystem_xsd.tmp#PvModuleDefinitionType_DepthWithJunctionBox PvSystem_xsd.tmp#PvModuleDefinitionType_FrameMaterial PvSystem_xsd.tmp#PvModuleDefinitionType_FrameColor PvSystem_xsd.tmp#PvModuleDefinitionType_BacksheetColor PvSystem_xsd.tmp#PvModuleDefinitionType_PowerWarranty PvSystem_xsd.tmp#PvModuleDefinitionType_Compliances PvSystem_xsd.tmp#PvModuleDefinitionType_UL1703Compliant PvSystem_xsd.tmp#PvModuleDefinitionType_NrtlCertifyingUl1703Compliance PvSystem_xsd.tmp#PvModuleDefinitionType_CsiApproved PvSystem_xsd.tmp#PvModuleDefinitionType_CecVmppLowLight PvSystem_xsd.tmp#PvModuleDefinitionType_CecImppLowLight PvSystem_xsd.tmp#PvModuleDefinitionType_CecVmppNoct PvSystem_xsd.tmp#PvModuleDefinitionType_CecImppNoct PvSystem_xsd.tmp#PvModuleDefinitionType_CecGeometricMultipl PvSystem_xsd.tmp#PvModuleDefinitionType_MeasurementDate PvSystem_xsd.tmp#PvModuleDefinitionType_FiveParamAref PvSystem_xsd.tmp#PvModuleDefinitionType_FiveParamILref PvSystem_xsd.tmp#PvModuleDefinitionType_FiveParamIoref PvSystem_xsd.tmp#PvModuleDefinitionType_FiveParamRs PvSystem_xsd.tmp#PvModuleDefinitionType_FiveParamRshref PvSystem_xsd.tmp#PvModuleDefinitionType_FiveParamAdjust PvSystem_xsd.tmp#PvModuleDefinitionType_SandiaIxo PvSystem_xsd.tmp#PvModuleDefinitionType_SandiaIxxo PvSystem_xsd.tmp#PvModuleDefinitionType_SandiaDiodeFactor PvSystem_xsd.tmp#PvModuleDefinitionType_SandiaThermalVoltage PvSystem_xsd.tmp#PvModuleDefinitionType_SandiaMbVoc PvSystem_xsd.tmp#PvModuleDefinitionType_SandiaMbVmpp PvSystem_xsd.tmp#PvModuleDefinitionType_GammaPmppPercent PvSystem_xsd.tmp#PvModuleDefinitionType_BetaVocPercent PvSystem_xsd.tmp#PvModuleDefinitionType_BetaMppPercent PvSystem_xsd.tmp#PvModuleDefinitionType_AlphaIscPercent PvSystem_xsd.tmp#PvModuleDefinitionType_AlphaImppPercent PvSystem_xsd.tmp#PvModuleDefinitionType_SandiaTempFactorA PvSystem_xsd.tmp#PvModuleDefinitionType_SandiaTempFactorB PvSystem_xsd.tmp#PvModuleDefinitionType_SandiaCoefA0 PvSystem_xsd.tmp#PvModuleDefinitionType_SandiaCoefA1 PvSystem_xsd.tmp#PvModuleDefinitionType_SandiaCoefA2 PvSystem_xsd.tmp#PvModuleDefinitionType_SandiaCoefA3 PvSystem_xsd.tmp#PvModuleDefinitionType_SandiaCoefA4 PvSystem_xsd.tmp#PvModuleDefinitionType_SandiaCoefB0 PvSystem_xsd.tmp#PvModuleDefinitionType_SandiaCoefB1 PvSystem_xsd.tmp#PvModuleDefinitionType_SandiaCoefB2 PvSystem_xsd.tmp#PvModuleDefinitionType_SandiaCoefB3 PvSystem_xsd.tmp#PvModuleDefinitionType_SandiaCoefB4 PvSystem_xsd.tmp#PvModuleDefinitionType_SandiaCoefB5 PvSystem_xsd.tmp#PvModuleDefinitionType_SandiaCoefC0 PvSystem_xsd.tmp#PvModuleDefinitionType_SandiaCoefC1 PvSystem_xsd.tmp#PvModuleDefinitionType_SandiaCoefC2 PvSystem_xsd.tmp#PvModuleDefinitionType_SandiaCoefC3 PvSystem_xsd.tmp#PvModuleDefinitionType_SandiaCoefC4 PvSystem_xsd.tmp#PvModuleDefinitionType_SandiaCoefC5 PvSystem_xsd.tmp#PvModuleDefinitionType_SandiaCoefC6 PvSystem_xsd.tmp#PvModuleDefinitionType_SandiaCoefC7 PvSystem_xsd.tmp#PvModuleDefinitionType_SandiaDiffuseAcceptanceFactor PvSystem_xsd.tmp#PvModuleDefinitionType_Notes PvSystem_xsd.tmp#PvModuleDefinitionType
Type PvModuleDefinitionType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Model Manufacturer , ModelNumber , ProductFamilyName{0,1} , Description{0,1} , MountingStyle{0,1} , Length{0,1} , Width{0,1} , Depth{0,1} , Weight{0,1} , EnclosureMaterial{0,1} , EnclosureNemaRating{0,1} , ListingAgency{0,1} , Warranty{0,1} , EnergyStarRated{0,1} , WhereManufactured{0,1} , Pstc{0,1} , PstcToleranceHighPercent{0,1} , PstcToleranceLowPercent{0,1} , Pptc{0,1} , Vmpp{0,1} , Impp{0,1} , Voc{0,1} , Isc{0,1} , MaxSystemVoltage{0,1} , MaxSystemCurrent{0,1} , FuseRating{0,1} , Noct{0,1} , VocTempCoefficient{0,1} , IscTempCoefficient{0,1} , MaxPowerTempCoefficient{0,1} , ModuleEfficiency{0,1} , CellEfficiency{0,1} , CellTechnology{0,1} , ModuleConstruction{0,1} , BIPV{0,1} , CableConnector{0,1} , CableDiameter{0,1} , ConnectorCableLength{0,1} , CellDimensions{0,1} , CellCount{0,1} , BypassDiodeCount{0,1} , ParallelSubstrings{0,1} , DepthWithJunctionBox{0,1} , FrameMaterial{0,1} , FrameColor{0,1} , BacksheetColor{0,1} , PowerWarranty* , Compliances{0,1} , UL1703Compliant{0,1} , NrtlCertifyingUl1703Compliance{0,1} , CsiApproved{0,1} , CecVmppLowLight{0,1} , CecImppLowLight{0,1} , CecVmppNoct{0,1} , CecImppNoct{0,1} , CecGeometricMultipl{0,1} , MeasurementDate{0,1} , FiveParamAref{0,1} , FiveParamILref{0,1} , FiveParamIoref{0,1} , FiveParamRs{0,1} , FiveParamRshref{0,1} , FiveParamAdjust{0,1} , SandiaIxo{0,1} , SandiaIxxo{0,1} , SandiaDiodeFactor{0,1} , SandiaThermalVoltage{0,1} , SandiaMbVoc{0,1} , SandiaMbVmpp{0,1} , GammaPmppPercent{0,1} , BetaVocPercent{0,1} , BetaMppPercent{0,1} , AlphaIscPercent{0,1} , AlphaImppPercent{0,1} , SandiaTempFactorA{0,1} , SandiaTempFactorB{0,1} , SandiaCoefA0{0,1} , SandiaCoefA1{0,1} , SandiaCoefA2{0,1} , SandiaCoefA3{0,1} , SandiaCoefA4{0,1} , SandiaCoefB0{0,1} , SandiaCoefB1{0,1} , SandiaCoefB2{0,1} , SandiaCoefB3{0,1} , SandiaCoefB4{0,1} , SandiaCoefB5{0,1} , SandiaCoefC0{0,1} , SandiaCoefC1{0,1} , SandiaCoefC2{0,1} , SandiaCoefC3{0,1} , SandiaCoefC4{0,1} , SandiaCoefC5{0,1} , SandiaCoefC6{0,1} , SandiaCoefC7{0,1} , SandiaDiffuseAcceptanceFactor{0,1} , Notes{0,1}
Children AlphaImppPercent, AlphaIscPercent, BIPV, BacksheetColor, BetaMppPercent, BetaVocPercent, BypassDiodeCount, CableConnector, CableDiameter, CecGeometricMultipl, CecImppLowLight, CecImppNoct, CecVmppLowLight, CecVmppNoct, CellCount, CellDimensions, CellEfficiency, CellTechnology, Compliances, ConnectorCableLength, CsiApproved, Depth, DepthWithJunctionBox, Description, EnclosureMaterial, EnclosureNemaRating, EnergyStarRated, FiveParamAdjust, FiveParamAref, FiveParamILref, FiveParamIoref, FiveParamRs, FiveParamRshref, FrameColor, FrameMaterial, FuseRating, GammaPmppPercent, Impp, Isc, IscTempCoefficient, Length, ListingAgency, Manufacturer, MaxPowerTempCoefficient, MaxSystemCurrent, MaxSystemVoltage, MeasurementDate, ModelNumber, ModuleConstruction, ModuleEfficiency, MountingStyle, Noct, Notes, NrtlCertifyingUl1703Compliance, ParallelSubstrings, PowerWarranty, Pptc, ProductFamilyName, Pstc, PstcToleranceHighPercent, PstcToleranceLowPercent, SandiaCoefA0, SandiaCoefA1, SandiaCoefA2, SandiaCoefA3, SandiaCoefA4, SandiaCoefB0, SandiaCoefB1, SandiaCoefB2, SandiaCoefB3, SandiaCoefB4, SandiaCoefB5, SandiaCoefC0, SandiaCoefC1, SandiaCoefC2, SandiaCoefC3, SandiaCoefC4, SandiaCoefC5, SandiaCoefC6, SandiaCoefC7, SandiaDiffuseAcceptanceFactor, SandiaDiodeFactor, SandiaIxo, SandiaIxxo, SandiaMbVmpp, SandiaMbVoc, SandiaTempFactorA, SandiaTempFactorB, SandiaThermalVoltage, UL1703Compliant, Vmpp, Voc, VocTempCoefficient, Warranty, Weight, WhereManufactured, Width
Instance
<ModuleDefinition Id="">
  <Manufacturer>{1,1}</Manufacturer>
  <ModelNumber>{1,1}</ModelNumber>
  <ProductFamilyName>{0,1}</ProductFamilyName>
  <Description>{0,1}</Description>
  <MountingStyle>{0,1}</MountingStyle>
  <Length>{0,1}</Length>
  <Width>{0,1}</Width>
  <Depth>{0,1}</Depth>
  <Weight>{0,1}</Weight>
  <EnclosureMaterial>{0,1}</EnclosureMaterial>
  <EnclosureNemaRating>{0,1}</EnclosureNemaRating>
  <ListingAgency>{0,1}</ListingAgency>
  <Warranty>{0,1}</Warranty>
  <EnergyStarRated>{0,1}</EnergyStarRated>
  <WhereManufactured>{0,1}</WhereManufactured>
  <Pstc>{0,1}</Pstc>
  <PstcToleranceHighPercent>{0,1}</PstcToleranceHighPercent>
  <PstcToleranceLowPercent>{0,1}</PstcToleranceLowPercent>
  <Pptc>{0,1}</Pptc>
  <Vmpp>{0,1}</Vmpp>
  <Impp>{0,1}</Impp>
  <Voc>{0,1}</Voc>
  <Isc>{0,1}</Isc>
  <MaxSystemVoltage>{0,1}</MaxSystemVoltage>
  <MaxSystemCurrent>{0,1}</MaxSystemCurrent>
  <FuseRating>{0,1}</FuseRating>
  <Noct>{0,1}</Noct>
  <VocTempCoefficient>{0,1}</VocTempCoefficient>
  <IscTempCoefficient>{0,1}</IscTempCoefficient>
  <MaxPowerTempCoefficient>{0,1}</MaxPowerTempCoefficient>
  <ModuleEfficiency>{0,1}</ModuleEfficiency>
  <CellEfficiency>{0,1}</CellEfficiency>
  <CellTechnology>{0,1}</CellTechnology>
  <ModuleConstruction>{0,1}</ModuleConstruction>
  <BIPV>{0,1}</BIPV>
  <CableConnector>{0,1}</CableConnector>
  <CableDiameter>{0,1}</CableDiameter>
  <ConnectorCableLength>{0,1}</ConnectorCableLength>
  <CellDimensions>{0,1}</CellDimensions>
  <CellCount>{0,1}</CellCount>
  <BypassDiodeCount>{0,1}</BypassDiodeCount>
  <ParallelSubstrings>{0,1}</ParallelSubstrings>
  <DepthWithJunctionBox>{0,1}</DepthWithJunctionBox>
  <FrameMaterial>{0,1}</FrameMaterial>
  <FrameColor>{0,1}</FrameColor>
  <BacksheetColor>{0,1}</BacksheetColor>
  <PowerWarranty>{0,unbounded}</PowerWarranty>
  <Compliances>{0,1}</Compliances>
  <UL1703Compliant>{0,1}</UL1703Compliant>
  <NrtlCertifyingUl1703Compliance>{0,1}</NrtlCertifyingUl1703Compliance>
  <CsiApproved>{0,1}</CsiApproved>
  <CecVmppLowLight>{0,1}</CecVmppLowLight>
  <CecImppLowLight>{0,1}</CecImppLowLight>
  <CecVmppNoct>{0,1}</CecVmppNoct>
  <CecImppNoct>{0,1}</CecImppNoct>
  <CecGeometricMultipl>{0,1}</CecGeometricMultipl>
  <MeasurementDate>{0,1}</MeasurementDate>
  <FiveParamAref>{0,1}</FiveParamAref>
  <FiveParamILref>{0,1}</FiveParamILref>
  <FiveParamIoref>{0,1}</FiveParamIoref>
  <FiveParamRs>{0,1}</FiveParamRs>
  <FiveParamRshref>{0,1}</FiveParamRshref>
  <FiveParamAdjust>{0,1}</FiveParamAdjust>
  <SandiaIxo>{0,1}</SandiaIxo>
  <SandiaIxxo>{0,1}</SandiaIxxo>
  <SandiaDiodeFactor>{0,1}</SandiaDiodeFactor>
  <SandiaThermalVoltage>{0,1}</SandiaThermalVoltage>
  <SandiaMbVoc>{0,1}</SandiaMbVoc>
  <SandiaMbVmpp>{0,1}</SandiaMbVmpp>
  <GammaPmppPercent>{0,1}</GammaPmppPercent>
  <BetaVocPercent>{0,1}</BetaVocPercent>
  <BetaMppPercent>{0,1}</BetaMppPercent>
  <AlphaIscPercent>{0,1}</AlphaIscPercent>
  <AlphaImppPercent>{0,1}</AlphaImppPercent>
  <SandiaTempFactorA>{0,1}</SandiaTempFactorA>
  <SandiaTempFactorB>{0,1}</SandiaTempFactorB>
  <SandiaCoefA0>{0,1}</SandiaCoefA0>
  <SandiaCoefA1>{0,1}</SandiaCoefA1>
  <SandiaCoefA2>{0,1}</SandiaCoefA2>
  <SandiaCoefA3>{0,1}</SandiaCoefA3>
  <SandiaCoefA4>{0,1}</SandiaCoefA4>
  <SandiaCoefB0>{0,1}</SandiaCoefB0>
  <SandiaCoefB1>{0,1}</SandiaCoefB1>
  <SandiaCoefB2>{0,1}</SandiaCoefB2>
  <SandiaCoefB3>{0,1}</SandiaCoefB3>
  <SandiaCoefB4>{0,1}</SandiaCoefB4>
  <SandiaCoefB5>{0,1}</SandiaCoefB5>
  <SandiaCoefC0>{0,1}</SandiaCoefC0>
  <SandiaCoefC1>{0,1}</SandiaCoefC1>
  <SandiaCoefC2>{0,1}</SandiaCoefC2>
  <SandiaCoefC3>{0,1}</SandiaCoefC3>
  <SandiaCoefC4>{0,1}</SandiaCoefC4>
  <SandiaCoefC5>{0,1}</SandiaCoefC5>
  <SandiaCoefC6>{0,1}</SandiaCoefC6>
  <SandiaCoefC7>{0,1}</SandiaCoefC7>
  <SandiaDiffuseAcceptanceFactor>{0,1}</SandiaDiffuseAcceptanceFactor>
  <Notes>{0,1}</Notes>
</ModuleDefinition>
Attributes
QName Type Fixed Default Use Annotation
ANY attribute from TARGET namespace 'http://www.iepmodel.net'
Id xs:ID required
Source
<xs:element name="ModuleDefinition" type="PvModuleDefinitionType" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Specifications for a PV module used in this design. A PvDesign may contain more than PV module make and model.</xs:documentation>
  </xs:annotation>
</xs:element>
Element PvModuleDefinitionType / Pstc
Namespace No namespace
Annotations
Rated power output at Standard Test Conditions (stc).
Diagram
Diagram
Type restriction of xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Facets
maxInclusive 800.0
minInclusive 1.0
Source
<xs:element name="Pstc" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Rated power output at Standard Test Conditions (stc).</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:double">
      <xs:minInclusive value="1.0"/>
      <xs:maxInclusive value="800.0"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
Element PvModuleDefinitionType / PstcToleranceHighPercent
Namespace No namespace
Annotations
Upper range of variation from rated power at STC. A module with this specification may output up to x % more than rated Pstc.
Diagram
Diagram
Type restriction of xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Facets
maxInclusive 20.0
minInclusive 0.0
Source
<xs:element name="PstcToleranceHighPercent" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Upper range of variation from rated power at STC. A module with this specification may output up to x % more than rated Pstc.</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:double">
      <xs:minInclusive value="0.0"/>
      <xs:maxInclusive value="20.0"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
Element PvModuleDefinitionType / PstcToleranceLowPercent
Namespace No namespace
Annotations
Lower range of variation from rated power at STC. A module with this specification may output up to x % less than rated Pstc.
Diagram
Diagram
Type restriction of xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Facets
maxInclusive 0.0
minInclusive -20.0
Source
<xs:element name="PstcToleranceLowPercent" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Lower range of variation from rated power at STC. A module with this specification may output up to x % less than rated Pstc.</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:double">
      <xs:minInclusive value="-20.0"/>
      <xs:maxInclusive value="0.0"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
Element PvModuleDefinitionType / Pptc
Namespace No namespace
Annotations
Rated power at PVUSA test conditions (PTC).
Diagram
Diagram
Type restriction of xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Facets
maxInclusive 800.0
minInclusive 1.0
Source
<xs:element name="Pptc" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Rated power at PVUSA test conditions (PTC).</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:double">
      <xs:minInclusive value="1.0"/>
      <xs:maxInclusive value="800.0"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
Element PvModuleDefinitionType / Vmpp
Namespace No namespace
Annotations
Voltage at max power (V)
Diagram
Diagram
Type xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<xs:element name="Vmpp" minOccurs="0" maxOccurs="1" type="xs:double">
  <xs:annotation>
    <xs:documentation>Voltage at max power (V)</xs:documentation>
  </xs:annotation>
</xs:element>
Element PvModuleDefinitionType / Impp
Namespace No namespace
Annotations
Current in amps at max power.
Diagram
Diagram
Type xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<xs:element name="Impp" minOccurs="0" maxOccurs="1" type="xs:double">
  <xs:annotation>
    <xs:documentation>Current in amps at max power.</xs:documentation>
  </xs:annotation>
</xs:element>
Element PvModuleDefinitionType / Voc
Namespace No namespace
Annotations
Open Circuit Voltage (V)
Diagram
Diagram
Type xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<xs:element name="Voc" minOccurs="0" maxOccurs="1" type="xs:double">
  <xs:annotation>
    <xs:documentation>Open Circuit Voltage (V)</xs:documentation>
  </xs:annotation>
</xs:element>
Element PvModuleDefinitionType / Isc
Namespace No namespace
Annotations
Short circuit current in amps.
Diagram
Diagram
Type xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<xs:element name="Isc" minOccurs="0" maxOccurs="1" type="xs:double">
  <xs:annotation>
    <xs:documentation>Short circuit current in amps.</xs:documentation>
  </xs:annotation>
</xs:element>
Element PvModuleDefinitionType / MaxSystemVoltage
Namespace No namespace
Diagram
Diagram
Type xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<xs:element name="MaxSystemVoltage" minOccurs="0" maxOccurs="1" type="xs:double">
</xs:element>
Element PvModuleDefinitionType / MaxSystemCurrent
Namespace No namespace
Diagram
Diagram
Type xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<xs:element name="MaxSystemCurrent" minOccurs="0" maxOccurs="1" type="xs:double">
</xs:element>
Element PvModuleDefinitionType / FuseRating
Namespace No namespace
Diagram
Diagram
Type xs:integer
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<xs:element name="FuseRating" minOccurs="0" maxOccurs="1" type="xs:integer">
</xs:element>
Element PvModuleDefinitionType / Noct
Namespace No namespace
Annotations
Nominal operating cell temperature (NOCT), expressed in deg C.
Diagram
Diagram
Type xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<xs:element name="Noct" minOccurs="0" maxOccurs="1" type="xs:double">
  <xs:annotation>
    <xs:documentation>Nominal operating cell temperature (NOCT), expressed in deg C.</xs:documentation>
  </xs:annotation>
</xs:element>
Element PvModuleDefinitionType / VocTempCoefficient
Namespace No namespace
Annotations
Open circuit voltage temperature coefficient, expressed in % / deg C.
Diagram
Diagram
Type xs:double
Properties
content: simple
minOccurs: 0
Source
<xs:element minOccurs="0" name="VocTempCoefficient" type="xs:double">
  <xs:annotation>
    <xs:documentation>Open circuit voltage temperature coefficient, expressed in % / deg C.</xs:documentation>
  </xs:annotation>
</xs:element>
Element PvModuleDefinitionType / IscTempCoefficient
Namespace No namespace
Annotations
Short circuit current temperature coefficient, expressed in % / deg C.
Diagram
Diagram
Type xs:double
Properties
content: simple
minOccurs: 0
Source
<xs:element minOccurs="0" name="IscTempCoefficient" type="xs:double">
  <xs:annotation>
    <xs:documentation>Short circuit current temperature coefficient, expressed in % / deg C.</xs:documentation>
  </xs:annotation>
</xs:element>
Element PvModuleDefinitionType / MaxPowerTempCoefficient
Namespace No namespace
Annotations
Maximum power temperature coefficient, expressed in % / deg C.
Diagram
Diagram
Type xs:double
Properties
content: simple
minOccurs: 0
Source
<xs:element minOccurs="0" name="MaxPowerTempCoefficient" type="xs:double">
  <xs:annotation>
    <xs:documentation>Maximum power temperature coefficient, expressed in % / deg C.</xs:documentation>
  </xs:annotation>
</xs:element>
Element PvModuleDefinitionType / ModuleEfficiency
Namespace No namespace
Annotations
Average efficiency of the entire module assembly, in percent.
Diagram
Diagram
Type xs:double
Properties
content: simple
minOccurs: 0
Source
<xs:element minOccurs="0" name="ModuleEfficiency" type="xs:double">
  <xs:annotation>
    <xs:documentation>Average efficiency of the entire module assembly, in percent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element PvModuleDefinitionType / CellEfficiency
Namespace No namespace
Annotations
Average efficiency of a single cell within the module assembly, in percent.
Diagram
Diagram
Type xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<xs:element name="CellEfficiency" minOccurs="0" maxOccurs="1" type="xs:double">
  <xs:annotation>
    <xs:documentation>Average efficiency of a single cell within the module assembly, in percent.</xs:documentation>
  </xs:annotation>
</xs:element>
Element PvModuleDefinitionType / CellTechnology
Namespace No namespace
Annotations
Describes the type of photovoltaic cell material.  Values include "Mono," "Poly," "a-Si," "Ribbon," "Mono + a-Si," "CdTe," "CIGS," "a-Si + micro-c," and "CIS"
Diagram
Diagram
Type xs:string
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<xs:element name="CellTechnology" minOccurs="0" maxOccurs="1" type="xs:string">
  <xs:annotation>
    <xs:documentation>Describes the type of photovoltaic cell material. Values include "Mono," "Poly," "a-Si," "Ribbon," "Mono + a-Si," "CdTe," "CIGS," "a-Si + micro-c," and "CIS"</xs:documentation>
  </xs:annotation>
</xs:element>
Element PvModuleDefinitionType / ModuleConstruction
Namespace No namespace
Annotations
Describes the type of construction used for the module.  For example, "Glass on Glass - frameless," "Framed glass with backsheet," etc.

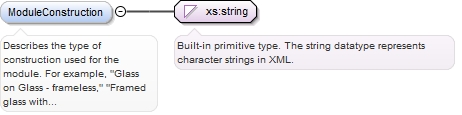

Diagram
Diagram
Type xs:string
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<xs:element name="ModuleConstruction" minOccurs="0" maxOccurs="1" type="xs:string">
  <xs:annotation>
    <xs:documentation>Describes the type of construction used for the module. For example, "Glass on Glass - frameless," "Framed glass with backsheet," etc.</xs:documentation>
  </xs:annotation>
</xs:element>
Element PvModuleDefinitionType / BIPV
Namespace No namespace
Annotations
Is the module classified as Building Integrated PV? The California Solar Initiative's (CSI) list of approved modules maintains such a classification.  TRUE means that it is.
Diagram
Diagram
Type xs:boolean
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<xs:element name="BIPV" minOccurs="0" maxOccurs="1" type="xs:boolean">
  <xs:annotation>
    <xs:documentation>Is the module classified as Building Integrated PV? The California Solar Initiative's (CSI) list of approved modules maintains such a classification. TRUE means that it is.</xs:documentation>
  </xs:annotation>
</xs:element>
Element PvModuleDefinitionType / CableConnector
Namespace No namespace
Annotations
Types of cable connections. Values may include "J-Box," "MC-3 (Solarline1)," "MC-4 (Solarline2)," "Tyco SolarLok," "Terminals," "MC (unspecified)"
Diagram
Diagram
Type restriction of xs:string
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Facets
maxLength 255
Source
<xs:element name="CableConnector" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Types of cable connections. Values may include "J-Box," "MC-3 (Solarline1)," "MC-4 (Solarline2)," "Tyco SolarLok," "Terminals," "MC (unspecified)"</xs:documentation>
  </xs:annotation>
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="255"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
Element PvModuleDefinitionType / CableDiameter
Namespace No namespace
Annotations
Wire gauge in AWG or kcmil.
Diagram
Diagram
Type xs:string
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<xs:element name="CableDiameter" minOccurs="0" maxOccurs="1" type="xs:string">
  <xs:annotation>
    <xs:documentation>Wire gauge in AWG or kcmil.</xs:documentation>
  </xs:annotation>
</xs:element>
Element PvModuleDefinitionType / ConnectorCableLength
Namespace No namespace
Annotations
Length of pre-installed cables.
Diagram
Diagram
Type xs:double
Properties
content: simple
minOccurs: 0
Source
<xs:element minOccurs="0" name="ConnectorCableLength" type="xs:double">
  <xs:annotation>
    <xs:documentation>Length of pre-installed cables.</xs:documentation>
  </xs:annotation>
</xs:element>
Element PvModuleDefinitionType / CellDimensions
Namespace No namespace
Diagram
Diagram
Type xs:string
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<xs:element name="CellDimensions" minOccurs="0" maxOccurs="1" type="xs:string">
</xs:element>
Element PvModuleDefinitionType / CellCount
Namespace No namespace
Diagram
Diagram
Type xs:integer
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<xs:element name="CellCount" minOccurs="0" maxOccurs="1" type="xs:integer">
</xs:element>
Element PvModuleDefinitionType / BypassDiodeCount
Namespace No namespace
Diagram
Diagram
Type xs:integer
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<xs:element name="BypassDiodeCount" minOccurs="0" maxOccurs="1" type="xs:integer">
</xs:element>
Element PvModuleDefinitionType / ParallelSubstrings
Namespace No namespace
Diagram
Diagram
Type xs:integer
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<xs:element name="ParallelSubstrings" minOccurs="0" maxOccurs="1" type="xs:integer">
</xs:element>
Element PvModuleDefinitionType / DepthWithJunctionBox
Namespace No namespace
Diagram
Diagram
Type xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<xs:element name="DepthWithJunctionBox" minOccurs="0" maxOccurs="1" type="xs:double">
</xs:element>
Element PvModuleDefinitionType / FrameMaterial
Namespace No namespace
Diagram
Diagram
Type xs:string
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<xs:element name="FrameMaterial" minOccurs="0" maxOccurs="1" type="xs:string">
</xs:element>
Element PvModuleDefinitionType / FrameColor
Namespace No namespace
Diagram
Diagram
Type xs:string
Properties
content: simple
minOccurs: 0
Source
<xs:element minOccurs="0" name="FrameColor" type="xs:string"/>
Element PvModuleDefinitionType / BacksheetColor
Namespace No namespace
Diagram
Diagram
Type xs:string
Properties
content: simple
minOccurs: 0
Source
<xs:element minOccurs="0" name="BacksheetColor" type="xs:string"/>
Element PvModuleDefinitionType / PowerWarranty
Namespace No namespace
Diagram
Diagram PvSystem_xsd.tmp#PvModuleDefinitionType_PvModuleDefinitionType_PowerWarranty_WarrantyPeriod PvSystem_xsd.tmp#PvModuleDefinitionType_PvModuleDefinitionType_PowerWarranty_WarrantedPower
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Model WarrantyPeriod , WarrantedPower
Children WarrantedPower, WarrantyPeriod
Instance
<PowerWarranty>
  <WarrantyPeriod>{1,1}</WarrantyPeriod>
  <WarrantedPower>{1,1}</WarrantedPower>
</PowerWarranty>
Source
<xs:element name="PowerWarranty" minOccurs="0" maxOccurs="unbounded">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="WarrantyPeriod" type="xs:integer">
        <xs:annotation>
          <xs:documentation>This defines the number of years of the warranty from the point at which the system was installed.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="WarrantedPower" type="xs:string">
        <xs:annotation>
          <xs:documentation>This describes the percentage of original rated output that can be expected at the end of the WarrantyPeriod</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>
Element PvModuleDefinitionType / PowerWarranty / WarrantyPeriod
Namespace No namespace
Annotations
This defines the number of years of the warranty from the point at which the system was installed.
Diagram
Diagram
Type xs:integer
Properties
content: simple
Source
<xs:element name="WarrantyPeriod" type="xs:integer">
  <xs:annotation>
    <xs:documentation>This defines the number of years of the warranty from the point at which the system was installed.</xs:documentation>
  </xs:annotation>
</xs:element>
Element PvModuleDefinitionType / PowerWarranty / WarrantedPower
Namespace No namespace
Annotations
This describes the percentage of original rated output that can be expected at the end of the WarrantyPeriod
Diagram
Diagram
Type xs:string
Properties
content: simple
Source
<xs:element name="WarrantedPower" type="xs:string">
  <xs:annotation>
    <xs:documentation>This describes the percentage of original rated output that can be expected at the end of the WarrantyPeriod</xs:documentation>
  </xs:annotation>
</xs:element>
Element PvModuleDefinitionType / Compliances
Namespace No namespace
Annotations
Describes testing standards with which the PV module complies.
Diagram
Diagram
Type xs:string
Properties
content: simple
minOccurs: 0
Source
<xs:element minOccurs="0" name="Compliances" type="xs:string">
  <xs:annotation>
    <xs:documentation>Describes testing standards with which the PV module complies.</xs:documentation>
  </xs:annotation>
</xs:element>
Element PvModuleDefinitionType / UL1703Compliant
Namespace No namespace
Annotations
Is the PV module UL 1703 compliant?
Diagram
Diagram
Type xs:boolean
Properties
content: simple
minOccurs: 0
Source
<xs:element minOccurs="0" name="UL1703Compliant" type="xs:boolean">
  <xs:annotation>
    <xs:documentation>Is the PV module UL 1703 compliant?</xs:documentation>
  </xs:annotation>
</xs:element>
Element PvModuleDefinitionType / NrtlCertifyingUl1703Compliance
Namespace No namespace
Annotations
Name of the testing lab (NRTL) that certifies compliance with UL 1703.
Diagram
Diagram
Type xs:string
Properties
content: simple
minOccurs: 0
Source
<xs:element minOccurs="0" name="NrtlCertifyingUl1703Compliance" type="xs:string">
  <xs:annotation>
    <xs:documentation>Name of the testing lab (NRTL) that certifies compliance with UL 1703.</xs:documentation>
  </xs:annotation>
</xs:element>
Element PvModuleDefinitionType / CsiApproved
Namespace No namespace
Annotations
Is the PV module listed as approved by the California Solar Initiative (CSI)? True means that it is approved.
Diagram
Diagram
Type xs:boolean
Properties
content: simple
minOccurs: 0
Source
<xs:element minOccurs="0" name="CsiApproved" type="xs:boolean">
  <xs:annotation>
    <xs:documentation>Is the PV module listed as approved by the California Solar Initiative (CSI)? True means that it is approved.</xs:documentation>
  </xs:annotation>
</xs:element>
Element PvModuleDefinitionType / CecVmppLowLight
Namespace No namespace
Diagram
Diagram
Type restriction of xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Facets
maxInclusive 500.0
minInclusive .1
Source
<xs:element name="CecVmppLowLight" minOccurs="0" maxOccurs="1">
  <xs:simpleType>
    <xs:restriction base="xs:double">
      <xs:minInclusive value=".1"/>
      <xs:maxInclusive value="500.0"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
Element PvModuleDefinitionType / CecImppLowLight
Namespace No namespace
Diagram
Diagram
Type restriction of xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Facets
maxInclusive 50.0
minInclusive .1
Source
<xs:element name="CecImppLowLight" minOccurs="0" maxOccurs="1">
  <xs:simpleType>
    <xs:restriction base="xs:double">
      <xs:minInclusive value=".1"/>
      <xs:maxInclusive value="50.0"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
Element PvModuleDefinitionType / CecVmppNoct
Namespace No namespace
Diagram
Diagram
Type restriction of xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Facets
maxInclusive 500.0
minInclusive 1.0
Source
<xs:element name="CecVmppNoct" minOccurs="0" maxOccurs="1">
  <xs:simpleType>
    <xs:restriction base="xs:double">
      <xs:minInclusive value="1.0"/>
      <xs:maxInclusive value="500.0"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
Element PvModuleDefinitionType / CecImppNoct
Namespace No namespace
Diagram
Diagram
Type restriction of xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Facets
maxInclusive 50.0
minInclusive .1
Source
<xs:element name="CecImppNoct" minOccurs="0" maxOccurs="1">
  <xs:simpleType>
    <xs:restriction base="xs:double">
      <xs:minInclusive value=".1"/>
      <xs:maxInclusive value="50.0"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
Element PvModuleDefinitionType / CecGeometricMultipl
Namespace No namespace
Diagram
Diagram
Type restriction of xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Facets
maxInclusive 1.0
minInclusive .10
Source
<xs:element name="CecGeometricMultipl" minOccurs="0" maxOccurs="1">
  <xs:simpleType>
    <xs:restriction base="xs:double">
      <xs:minInclusive value=".10"/>
      <xs:maxInclusive value="1.0"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
Element PvModuleDefinitionType / MeasurementDate
Namespace No namespace
Diagram
Diagram
Type restriction of xs:string
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Facets
maxLength 255
Source
<xs:element name="MeasurementDate" minOccurs="0" maxOccurs="1">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="255"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
Element PvModuleDefinitionType / FiveParamAref
Namespace No namespace
Diagram
Diagram
Type restriction of xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Facets
maxInclusive 10.0
minInclusive .1
Source
<xs:element name="FiveParamAref" minOccurs="0" maxOccurs="1">
  <xs:simpleType>
    <xs:restriction base="xs:double">
      <xs:minInclusive value=".1"/>
      <xs:maxInclusive value="10.0"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
Element PvModuleDefinitionType / FiveParamILref
Namespace No namespace
Diagram
Diagram
Type restriction of xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Facets
maxInclusive 20.0
minInclusive .1
Source
<xs:element name="FiveParamILref" minOccurs="0" maxOccurs="1">
  <xs:simpleType>
    <xs:restriction base="xs:double">
      <xs:minInclusive value=".1"/>
      <xs:maxInclusive value="20.0"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
Element PvModuleDefinitionType / FiveParamIoref
Namespace No namespace
Diagram
Diagram
Type restriction of xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Facets
maxInclusive 1.0e-6
minInclusive 1.0e-13
Source
<xs:element name="FiveParamIoref" minOccurs="0" maxOccurs="1">
  <xs:simpleType>
    <xs:restriction base="xs:double">
      <xs:minInclusive value="1.0e-13"/>
      <xs:maxInclusive value="1.0e-6"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
Element PvModuleDefinitionType / FiveParamRs
Namespace No namespace
Diagram
Diagram
Type restriction of xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Facets
maxInclusive 100.0
minInclusive 1.0e-3
Source
<xs:element name="FiveParamRs" minOccurs="0" maxOccurs="1">
  <xs:simpleType>
    <xs:restriction base="xs:double">
      <xs:minInclusive value="1.0e-3"/>
      <xs:maxInclusive value="100.0"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
Element PvModuleDefinitionType / FiveParamRshref
Namespace No namespace
Diagram
Diagram
Type restriction of xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Facets
maxInclusive 1000000.00
minInclusive 10.0
Source
<xs:element name="FiveParamRshref" minOccurs="0" maxOccurs="1">
  <xs:simpleType>
    <xs:restriction base="xs:double">
      <xs:minInclusive value="10.0"/>
      <xs:maxInclusive value="1000000.00"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
Element PvModuleDefinitionType / FiveParamAdjust
Namespace No namespace
Diagram
Diagram
Type restriction of xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Facets
maxInclusive 100.0
minInclusive -100.0
Source
<xs:element name="FiveParamAdjust" minOccurs="0" maxOccurs="1">
  <xs:simpleType>
    <xs:restriction base="xs:double">
      <xs:minInclusive value="-100.0"/>
      <xs:maxInclusive value="100.0"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
Element PvModuleDefinitionType / SandiaIxo
Namespace No namespace
Diagram
Diagram
Type restriction of xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Facets
maxInclusive 50.0
minInclusive .1
Source
<xs:element name="SandiaIxo" minOccurs="0" maxOccurs="1">
  <xs:simpleType>
    <xs:restriction base="xs:double">
      <xs:minInclusive value=".1"/>
      <xs:maxInclusive value="50.0"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
Element PvModuleDefinitionType / SandiaIxxo
Namespace No namespace
Diagram
Diagram
Type restriction of xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Facets
maxInclusive 50.0
minInclusive .1
Source
<xs:element name="SandiaIxxo" minOccurs="0" maxOccurs="1">
  <xs:simpleType>
    <xs:restriction base="xs:double">
      <xs:minInclusive value=".1"/>
      <xs:maxInclusive value="50.0"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
Element PvModuleDefinitionType / SandiaDiodeFactor
Namespace No namespace
Diagram
Diagram
Type restriction of xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Facets
maxInclusive 10.0
minInclusive .1
Source
<xs:element name="SandiaDiodeFactor" minOccurs="0" maxOccurs="1">
  <xs:simpleType>
    <xs:restriction base="xs:double">
      <xs:minInclusive value=".1"/>
      <xs:maxInclusive value="10.0"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
Element PvModuleDefinitionType / SandiaThermalVoltage
Namespace No namespace
Diagram
Diagram
Type restriction of xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Facets
maxInclusive 10.0
minInclusive .1
Source
<xs:element name="SandiaThermalVoltage" minOccurs="0" maxOccurs="1">
  <xs:simpleType>
    <xs:restriction base="xs:double">
      <xs:minInclusive value=".1"/>
      <xs:maxInclusive value="10.0"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
Element PvModuleDefinitionType / SandiaMbVoc
Namespace No namespace
Diagram
Diagram
Type xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<xs:element name="SandiaMbVoc" minOccurs="0" maxOccurs="1">
  <xs:simpleType>
    <xs:restriction base="xs:double"/>
  </xs:simpleType>
</xs:element>
Element PvModuleDefinitionType / SandiaMbVmpp
Namespace No namespace
Diagram
Diagram
Type xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<xs:element name="SandiaMbVmpp" minOccurs="0" maxOccurs="1">
  <xs:simpleType>
    <xs:restriction base="xs:double"/>
  </xs:simpleType>
</xs:element>
Element PvModuleDefinitionType / GammaPmppPercent
Namespace No namespace
Diagram
Diagram
Type restriction of xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Facets
maxInclusive 10.0
minInclusive -10.0
Source
<xs:element name="GammaPmppPercent" minOccurs="0" maxOccurs="1">
  <xs:simpleType>
    <xs:restriction base="xs:double">
      <xs:minInclusive value="-10.0"/>
      <xs:maxInclusive value="10.0"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
Element PvModuleDefinitionType / BetaVocPercent
Namespace No namespace
Diagram
Diagram
Type restriction of xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Facets
maxInclusive 2.0
minInclusive -2.0
Source
<xs:element name="BetaVocPercent" minOccurs="0" maxOccurs="1">
  <xs:simpleType>
    <xs:restriction base="xs:double">
      <xs:minInclusive value="-2.0"/>
      <xs:maxInclusive value="2.0"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
Element PvModuleDefinitionType / BetaMppPercent
Namespace No namespace
Diagram
Diagram
Type restriction of xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Facets
maxInclusive 2.0
minInclusive -2.0
Source
<xs:element name="BetaMppPercent" minOccurs="0" maxOccurs="1">
  <xs:simpleType>
    <xs:restriction base="xs:double">
      <xs:minInclusive value="-2.0"/>
      <xs:maxInclusive value="2.0"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
Element PvModuleDefinitionType / AlphaIscPercent
Namespace No namespace
Diagram
Diagram
Type restriction of xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Facets
maxInclusive 2.0
minInclusive -2.0
Source
<xs:element name="AlphaIscPercent" minOccurs="0" maxOccurs="1">
  <xs:simpleType>
    <xs:restriction base="xs:double">
      <xs:minInclusive value="-2.0"/>
      <xs:maxInclusive value="2.0"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
Element PvModuleDefinitionType / AlphaImppPercent
Namespace No namespace
Diagram
Diagram
Type restriction of xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Facets
maxInclusive 2.0
minInclusive -2.0
Source
<xs:element name="AlphaImppPercent" minOccurs="0" maxOccurs="1">
  <xs:simpleType>
    <xs:restriction base="xs:double">
      <xs:minInclusive value="-2.0"/>
      <xs:maxInclusive value="2.0"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
Element PvModuleDefinitionType / SandiaTempFactorA
Namespace No namespace
Diagram
Diagram
Type restriction of xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Facets
maxInclusive -1.0
minInclusive -5.0
Source
<xs:element name="SandiaTempFactorA" minOccurs="0" maxOccurs="1">
  <xs:simpleType>
    <xs:restriction base="xs:double">
      <xs:minInclusive value="-5.0"/>
      <xs:maxInclusive value="-1.0"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
Element PvModuleDefinitionType / SandiaTempFactorB
Namespace No namespace
Diagram
Diagram
Type restriction of xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Facets
maxInclusive -0.01
minInclusive -1.0
Source
<xs:element name="SandiaTempFactorB" minOccurs="0" maxOccurs="1">
  <xs:simpleType>
    <xs:restriction base="xs:double">
      <xs:minInclusive value="-1.0"/>
      <xs:maxInclusive value="-0.01"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
Element PvModuleDefinitionType / SandiaCoefA0
Namespace No namespace
Diagram
Diagram
Type restriction of xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Facets
maxInclusive 100.0
minInclusive -100.0
Source
<xs:element name="SandiaCoefA0" minOccurs="0" maxOccurs="1">
  <xs:simpleType>
    <xs:restriction base="xs:double">
      <xs:minInclusive value="-100.0"/>
      <xs:maxInclusive value="100.0"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
Element PvModuleDefinitionType / SandiaCoefA1
Namespace No namespace
Diagram
Diagram
Type restriction of xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Facets
maxInclusive 100.0
minInclusive -100.0
Source
<xs:element name="SandiaCoefA1" minOccurs="0" maxOccurs="1">
  <xs:simpleType>
    <xs:restriction base="xs:double">
      <xs:minInclusive value="-100.0"/>
      <xs:maxInclusive value="100.0"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
Element PvModuleDefinitionType / SandiaCoefA2
Namespace No namespace
Diagram
Diagram
Type restriction of xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Facets
maxInclusive 100.0
minInclusive -100.0
Source
<xs:element name="SandiaCoefA2" minOccurs="0" maxOccurs="1">
  <xs:simpleType>
    <xs:restriction base="xs:double">
      <xs:minInclusive value="-100.0"/>
      <xs:maxInclusive value="100.0"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
Element PvModuleDefinitionType / SandiaCoefA3
Namespace No namespace
Diagram
Diagram
Type restriction of xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Facets
maxInclusive 100.0
minInclusive -100.0
Source
<xs:element name="SandiaCoefA3" minOccurs="0" maxOccurs="1">
  <xs:simpleType>
    <xs:restriction base="xs:double">
      <xs:minInclusive value="-100.0"/>
      <xs:maxInclusive value="100.0"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
Element PvModuleDefinitionType / SandiaCoefA4
Namespace No namespace
Diagram
Diagram
Type restriction of xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Facets
maxInclusive 100.0
minInclusive -100.0
Source
<xs:element name="SandiaCoefA4" minOccurs="0" maxOccurs="1">
  <xs:simpleType>
    <xs:restriction base="xs:double">
      <xs:minInclusive value="-100.0"/>
      <xs:maxInclusive value="100.0"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
Element PvModuleDefinitionType / SandiaCoefB0
Namespace No namespace
Diagram
Diagram
Type restriction of xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Facets
maxInclusive 100.0
minInclusive -100.0
Source
<xs:element name="SandiaCoefB0" minOccurs="0" maxOccurs="1">
  <xs:simpleType>
    <xs:restriction base="xs:double">
      <xs:minInclusive value="-100.0"/>
      <xs:maxInclusive value="100.0"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
Element PvModuleDefinitionType / SandiaCoefB1
Namespace No namespace
Diagram
Diagram
Type restriction of xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Facets
maxInclusive 100.0
minInclusive -100.0
Source
<xs:element name="SandiaCoefB1" minOccurs="0" maxOccurs="1">
  <xs:simpleType>
    <xs:restriction base="xs:double">
      <xs:minInclusive value="-100.0"/>
      <xs:maxInclusive value="100.0"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
Element PvModuleDefinitionType / SandiaCoefB2
Namespace No namespace
Diagram
Diagram
Type restriction of xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Facets
maxInclusive 100.0
minInclusive -100.0
Source
<xs:element name="SandiaCoefB2" minOccurs="0" maxOccurs="1">
  <xs:simpleType>
    <xs:restriction base="xs:double">
      <xs:minInclusive value="-100.0"/>
      <xs:maxInclusive value="100.0"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
Element PvModuleDefinitionType / SandiaCoefB3
Namespace No namespace
Diagram
Diagram
Type restriction of xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Facets
maxInclusive 100.0
minInclusive -100.0
Source
<xs:element name="SandiaCoefB3" minOccurs="0" maxOccurs="1">
  <xs:simpleType>
    <xs:restriction base="xs:double">
      <xs:minInclusive value="-100.0"/>
      <xs:maxInclusive value="100.0"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
Element PvModuleDefinitionType / SandiaCoefB4
Namespace No namespace
Diagram
Diagram
Type restriction of xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Facets
maxInclusive 100.0
minInclusive -100.0
Source
<xs:element name="SandiaCoefB4" minOccurs="0" maxOccurs="1">
  <xs:simpleType>
    <xs:restriction base="xs:double">
      <xs:minInclusive value="-100.0"/>
      <xs:maxInclusive value="100.0"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
Element PvModuleDefinitionType / SandiaCoefB5
Namespace No namespace
Diagram
Diagram
Type restriction of xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Facets
maxInclusive 100.0
minInclusive -100.0
Source
<xs:element name="SandiaCoefB5" minOccurs="0" maxOccurs="1">
  <xs:simpleType>
    <xs:restriction base="xs:double">
      <xs:minInclusive value="-100.0"/>
      <xs:maxInclusive value="100.0"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
Element PvModuleDefinitionType / SandiaCoefC0
Namespace No namespace
Diagram
Diagram
Type restriction of xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Facets
maxInclusive 100.0
minInclusive -100.0
Source
<xs:element name="SandiaCoefC0" minOccurs="0" maxOccurs="1">
  <xs:simpleType>
    <xs:restriction base="xs:double">
      <xs:minInclusive value="-100.0"/>
      <xs:maxInclusive value="100.0"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
Element PvModuleDefinitionType / SandiaCoefC1
Namespace No namespace
Diagram
Diagram
Type restriction of xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Facets
maxInclusive 100.0
minInclusive -100.0
Source
<xs:element name="SandiaCoefC1" minOccurs="0" maxOccurs="1">
  <xs:simpleType>
    <xs:restriction base="xs:double">
      <xs:minInclusive value="-100.0"/>
      <xs:maxInclusive value="100.0"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
Element PvModuleDefinitionType / SandiaCoefC2
Namespace No namespace
Diagram
Diagram
Type restriction of xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Facets
maxInclusive 100.0
minInclusive -100.0
Source
<xs:element name="SandiaCoefC2" minOccurs="0" maxOccurs="1">
  <xs:simpleType>
    <xs:restriction base="xs:double">
      <xs:minInclusive value="-100.0"/>
      <xs:maxInclusive value="100.0"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
Element PvModuleDefinitionType / SandiaCoefC3
Namespace No namespace
Diagram
Diagram
Type restriction of xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Facets
maxInclusive 100.0
minInclusive -100.0
Source
<xs:element name="SandiaCoefC3" minOccurs="0" maxOccurs="1">
  <xs:simpleType>
    <xs:restriction base="xs:double">
      <xs:minInclusive value="-100.0"/>
      <xs:maxInclusive value="100.0"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
Element PvModuleDefinitionType / SandiaCoefC4
Namespace No namespace
Diagram
Diagram
Type restriction of xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Facets
maxInclusive 100.0
minInclusive -100.0
Source
<xs:element name="SandiaCoefC4" minOccurs="0" maxOccurs="1">
  <xs:simpleType>
    <xs:restriction base="xs:double">
      <xs:minInclusive value="-100.0"/>
      <xs:maxInclusive value="100.0"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
Element PvModuleDefinitionType / SandiaCoefC5
Namespace No namespace
Diagram
Diagram
Type restriction of xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Facets
maxInclusive 100.0
minInclusive -100.0
Source
<xs:element name="SandiaCoefC5" minOccurs="0" maxOccurs="1">
  <xs:simpleType>
    <xs:restriction base="xs:double">
      <xs:minInclusive value="-100.0"/>
      <xs:maxInclusive value="100.0"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
Element PvModuleDefinitionType / SandiaCoefC6
Namespace No namespace
Diagram
Diagram
Type restriction of xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Facets
maxInclusive 100.0
minInclusive -100.0
Source
<xs:element name="SandiaCoefC6" minOccurs="0" maxOccurs="1">
  <xs:simpleType>
    <xs:restriction base="xs:double">
      <xs:minInclusive value="-100.0"/>
      <xs:maxInclusive value="100.0"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
Element PvModuleDefinitionType / SandiaCoefC7
Namespace No namespace
Diagram
Diagram
Type restriction of xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Facets
maxInclusive 100.0
minInclusive -100.0
Source
<xs:element name="SandiaCoefC7" minOccurs="0" maxOccurs="1">
  <xs:simpleType>
    <xs:restriction base="xs:double">
      <xs:minInclusive value="-100.0"/>
      <xs:maxInclusive value="100.0"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
Element PvModuleDefinitionType / SandiaDiffuseAcceptanceFactor
Namespace No namespace
Diagram
Diagram
Type restriction of xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Facets
maxInclusive 1.0
minInclusive .1
Source
<xs:element name="SandiaDiffuseAcceptanceFactor" minOccurs="0" maxOccurs="1">
  <xs:simpleType>
    <xs:restriction base="xs:double">
      <xs:minInclusive value=".1"/>
      <xs:maxInclusive value="1.0"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
Element PvModuleDefinitionType / Notes
Namespace No namespace
Diagram
Diagram
Type restriction of xs:string
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Facets
maxLength 255
Source
<xs:element name="Notes" minOccurs="0" maxOccurs="1">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:maxLength value="255"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>
Element PvSystemType / InverterDefinition
Namespace No namespace
Annotations
Specifications for an inverter used in this design. A PvDesign may contain more than inverter make and model.
Diagram
Diagram Common_xsd.tmp#EquipmentDefinitionType_Id Common_xsd.tmp#EquipmentDefinitionType_Manufacturer Common_xsd.tmp#EquipmentDefinitionType_ModelNumber Common_xsd.tmp#EquipmentDefinitionType_ProductFamilyName Common_xsd.tmp#EquipmentDefinitionType_Description Common_xsd.tmp#EquipmentDefinitionType_MountingStyle Common_xsd.tmp#EquipmentDefinitionType_Length Common_xsd.tmp#EquipmentDefinitionType_Width Common_xsd.tmp#EquipmentDefinitionType_Depth Common_xsd.tmp#EquipmentDefinitionType_Weight Common_xsd.tmp#EquipmentDefinitionType_EnclosureMaterial Common_xsd.tmp#EquipmentDefinitionType_EnclosureNemaRating Common_xsd.tmp#EquipmentDefinitionType_ListingAgency Common_xsd.tmp#EquipmentDefinitionType_Warranty Common_xsd.tmp#EquipmentDefinitionType_EnergyStarRated Common_xsd.tmp#EquipmentDefinitionType_WhereManufactured Common_xsd.tmp#EquipmentDefinitionType PvSystem_xsd.tmp#InverterDefinitionType_InverterCategory PvSystem_xsd.tmp#InverterDefinitionType_IsMicroInverter PvSystem_xsd.tmp#InverterDefinitionType_MppTrackerQuantity PvSystem_xsd.tmp#InverterDefinitionType_MinMpptVoltage PvSystem_xsd.tmp#InverterDefinitionType_MaxMpptVoltage PvSystem_xsd.tmp#InverterDefinitionType_MaxDcInputPower PvSystem_xsd.tmp#InverterDefinitionType_NominalDcVoltage PvSystem_xsd.tmp#InverterDefinitionType_MaxDcVoltage PvSystem_xsd.tmp#InverterDefinitionType_PvDcStartVoltage PvSystem_xsd.tmp#InverterDefinitionType_NominalDcCurrent PvSystem_xsd.tmp#InverterDefinitionType_MaxDcCurrent PvSystem_xsd.tmp#InverterDefinitionType_DcTerminalQuantity PvSystem_xsd.tmp#InverterDefinitionType_DcTerminalMechanism PvSystem_xsd.tmp#InverterDefinitionType_DcTerminalWireRange PvSystem_xsd.tmp#InverterDefinitionType_IntegratedDcDisconnect PvSystem_xsd.tmp#InverterDefinitionType_IntegratedDcDisconnectRating PvSystem_xsd.tmp#InverterDefinitionType_IntegratedCombiner PvSystem_xsd.tmp#InverterDefinitionType_IntegratedCombinerFuses PvSystem_xsd.tmp#InverterDefinitionType_IntegratedCombinerMaxFuse PvSystem_xsd.tmp#InverterDefinitionType_NominalAcPower PvSystem_xsd.tmp#InverterDefinitionType_NominalAcVoltage PvSystem_xsd.tmp#InverterDefinitionType_GridVoltageRange PvSystem_xsd.tmp#InverterDefinitionType_GridFrequency PvSystem_xsd.tmp#InverterDefinitionType_MaxAcCurrent PvSystem_xsd.tmp#InverterDefinitionType_AcOcpdRating PvSystem_xsd.tmp#InverterDefinitionType_AcOcpdInterruptCapacity PvSystem_xsd.tmp#InverterDefinitionType_IntegratedAcDisconnect PvSystem_xsd.tmp#InverterDefinitionType_IntegratedAcDisconnectRating PvSystem_xsd.tmp#InverterDefinitionType_NeutralSizingRequirement PvSystem_xsd.tmp#InverterDefinitionType_AcTerminalQuantity PvSystem_xsd.tmp#InverterDefinitionType_AcTerminalWireRange PvSystem_xsd.tmp#InverterDefinitionType_GecTerminalQuantity PvSystem_xsd.tmp#InverterDefinitionType_GecTerminalWireRange PvSystem_xsd.tmp#InverterDefinitionType_MaxEfficiency PvSystem_xsd.tmp#InverterDefinitionType_CecWeightedEfficiency PvSystem_xsd.tmp#InverterDefinitionType_EuroEtaEffeciency PvSystem_xsd.tmp#InverterDefinitionType_Transformer PvSystem_xsd.tmp#InverterDefinitionType_PositiveGroundOption PvSystem_xsd.tmp#InverterDefinitionType_Cooling PvSystem_xsd.tmp#InverterDefinitionType_CSIApprovedBuiltInMeter PvSystem_xsd.tmp#InverterDefinitionType_CSINightTareLoss PvSystem_xsd.tmp#InverterDefinitionType_AmbientTempRange PvSystem_xsd.tmp#InverterDefinitionType_DataInterfaceOptions PvSystem_xsd.tmp#InverterDefinitionType_ConduitEntryZones PvSystem_xsd.tmp#InverterDefinitionType_Compliances PvSystem_xsd.tmp#InverterDefinitionType_UL1741Compliant PvSystem_xsd.tmp#InverterDefinitionType_NrtlCertifyingUL1741 PvSystem_xsd.tmp#InverterDefinitionType_CsiApproved PvSystem_xsd.tmp#InverterDefinitionType_Notes PvSystem_xsd.tmp#InverterDefinitionType
Type InverterDefinitionType
Type hierarchy
Properties
content: complex
minOccurs: 0
maxOccurs: unbounded
Model Manufacturer , ModelNumber , ProductFamilyName{0,1} , Description{0,1} , MountingStyle{0,1} , Length{0,1} , Width{0,1} , Depth{0,1} , Weight{0,1} , EnclosureMaterial{0,1} , EnclosureNemaRating{0,1} , ListingAgency{0,1} , Warranty{0,1} , EnergyStarRated{0,1} , WhereManufactured{0,1} , InverterCategory{0,1} , IsMicroInverter{0,1} , MppTrackerQuantity{0,1} , MinMpptVoltage{0,1} , MaxMpptVoltage{0,1} , MaxDcInputPower{0,1} , NominalDcVoltage{0,1} , MaxDcVoltage{0,1} , PvDcStartVoltage{0,1} , NominalDcCurrent{0,1} , MaxDcCurrent{0,1} , DcTerminalQuantity{0,1} , DcTerminalMechanism{0,1} , DcTerminalWireRange{0,1} , IntegratedDcDisconnect{0,1} , IntegratedDcDisconnectRating{0,1} , IntegratedCombiner{0,1} , IntegratedCombinerFuses{0,1} , IntegratedCombinerMaxFuse{0,1} , NominalAcPower{0,1} , NominalAcVoltage{0,1} , GridVoltageRange{0,1} , GridFrequency{0,1} , MaxAcCurrent{0,1} , AcOcpdRating{0,1} , AcOcpdInterruptCapacity{0,1} , IntegratedAcDisconnect{0,1} , IntegratedAcDisconnectRating{0,1} , NeutralSizingRequirement{0,1} , AcTerminalQuantity{0,1} , AcTerminalWireRange{0,1} , GecTerminalQuantity{0,1} , GecTerminalWireRange{0,1} , MaxEfficiency{0,1} , CecWeightedEfficiency{0,1} , EuroEtaEffeciency{0,1} , Transformer{0,1} , PositiveGroundOption{0,1} , Cooling{0,1} , CSIApprovedBuiltInMeter{0,1} , CSINightTareLoss{0,1} , AmbientTempRange{0,1} , DataInterfaceOptions{0,1} , ConduitEntryZones{0,1} , Compliances{0,1} , UL1741Compliant{0,1} , NrtlCertifyingUL1741{0,1} , CsiApproved{0,1} , Notes{0,1}
Children AcOcpdInterruptCapacity, AcOcpdRating, AcTerminalQuantity, AcTerminalWireRange, AmbientTempRange, CSIApprovedBuiltInMeter, CSINightTareLoss, CecWeightedEfficiency, Compliances, ConduitEntryZones, Cooling, CsiApproved, DataInterfaceOptions, DcTerminalMechanism, DcTerminalQuantity, DcTerminalWireRange, Depth, Description, EnclosureMaterial, EnclosureNemaRating, EnergyStarRated, EuroEtaEffeciency, GecTerminalQuantity, GecTerminalWireRange, GridFrequency, GridVoltageRange, IntegratedAcDisconnect, IntegratedAcDisconnectRating, IntegratedCombiner, IntegratedCombinerFuses, IntegratedCombinerMaxFuse, IntegratedDcDisconnect, IntegratedDcDisconnectRating, InverterCategory, IsMicroInverter, Length, ListingAgency, Manufacturer, MaxAcCurrent, MaxDcCurrent, MaxDcInputPower, MaxDcVoltage, MaxEfficiency, MaxMpptVoltage, MinMpptVoltage, ModelNumber, MountingStyle, MppTrackerQuantity, NeutralSizingRequirement, NominalAcPower, NominalAcVoltage, NominalDcCurrent, NominalDcVoltage, Notes, NrtlCertifyingUL1741, PositiveGroundOption, ProductFamilyName, PvDcStartVoltage, Transformer, UL1741Compliant, Warranty, Weight, WhereManufactured, Width
Instance
<InverterDefinition Id="">
  <Manufacturer>{1,1}</Manufacturer>
  <ModelNumber>{1,1}</ModelNumber>
  <ProductFamilyName>{0,1}</ProductFamilyName>
  <Description>{0,1}</Description>
  <MountingStyle>{0,1}</MountingStyle>
  <Length>{0,1}</Length>
  <Width>{0,1}</Width>
  <Depth>{0,1}</Depth>
  <Weight>{0,1}</Weight>
  <EnclosureMaterial>{0,1}</EnclosureMaterial>
  <EnclosureNemaRating>{0,1}</EnclosureNemaRating>
  <ListingAgency>{0,1}</ListingAgency>
  <Warranty>{0,1}</Warranty>
  <EnergyStarRated>{0,1}</EnergyStarRated>
  <WhereManufactured>{0,1}</WhereManufactured>
  <InverterCategory>{0,1}</InverterCategory>
  <IsMicroInverter>{0,1}</IsMicroInverter>
  <MppTrackerQuantity>{0,1}</MppTrackerQuantity>
  <MinMpptVoltage>{0,1}</MinMpptVoltage>
  <MaxMpptVoltage>{0,1}</MaxMpptVoltage>
  <MaxDcInputPower>{0,1}</MaxDcInputPower>
  <NominalDcVoltage>{0,1}</NominalDcVoltage>
  <MaxDcVoltage>{0,1}</MaxDcVoltage>
  <PvDcStartVoltage>{0,1}</PvDcStartVoltage>
  <NominalDcCurrent>{0,1}</NominalDcCurrent>
  <MaxDcCurrent>{0,1}</MaxDcCurrent>
  <DcTerminalQuantity>{0,1}</DcTerminalQuantity>
  <DcTerminalMechanism>{0,1}</DcTerminalMechanism>
  <DcTerminalWireRange>{0,1}</DcTerminalWireRange>
  <IntegratedDcDisconnect>{0,1}</IntegratedDcDisconnect>
  <IntegratedDcDisconnectRating>{0,1}</IntegratedDcDisconnectRating>
  <IntegratedCombiner>{0,1}</IntegratedCombiner>
  <IntegratedCombinerFuses>{0,1}</IntegratedCombinerFuses>
  <IntegratedCombinerMaxFuse>{0,1}</IntegratedCombinerMaxFuse>
  <NominalAcPower>{0,1}</NominalAcPower>
  <NominalAcVoltage>{0,1}</NominalAcVoltage>
  <GridVoltageRange>{0,1}</GridVoltageRange>
  <GridFrequency>{0,1}</GridFrequency>
  <MaxAcCurrent>{0,1}</MaxAcCurrent>
  <AcOcpdRating>{0,1}</AcOcpdRating>
  <AcOcpdInterruptCapacity>{0,1}</AcOcpdInterruptCapacity>
  <IntegratedAcDisconnect>{0,1}</IntegratedAcDisconnect>
  <IntegratedAcDisconnectRating>{0,1}</IntegratedAcDisconnectRating>
  <NeutralSizingRequirement>{0,1}</NeutralSizingRequirement>
  <AcTerminalQuantity>{0,1}</AcTerminalQuantity>
  <AcTerminalWireRange>{0,1}</AcTerminalWireRange>
  <GecTerminalQuantity>{0,1}</GecTerminalQuantity>
  <GecTerminalWireRange>{0,1}</GecTerminalWireRange>
  <MaxEfficiency>{0,1}</MaxEfficiency>
  <CecWeightedEfficiency>{0,1}</CecWeightedEfficiency>
  <EuroEtaEffeciency>{0,1}</EuroEtaEffeciency>
  <Transformer>{0,1}</Transformer>
  <PositiveGroundOption>{0,1}</PositiveGroundOption>
  <Cooling>{0,1}</Cooling>
  <CSIApprovedBuiltInMeter>{0,1}</CSIApprovedBuiltInMeter>
  <CSINightTareLoss>{0,1}</CSINightTareLoss>
  <AmbientTempRange>{0,1}</AmbientTempRange>
  <DataInterfaceOptions>{0,1}</DataInterfaceOptions>
  <ConduitEntryZones>{0,1}</ConduitEntryZones>
  <Compliances>{0,1}</Compliances>
  <UL1741Compliant>{0,1}</UL1741Compliant>
  <NrtlCertifyingUL1741>{0,1}</NrtlCertifyingUL1741>
  <CsiApproved>{0,1}</CsiApproved>
  <Notes>{0,1}</Notes>
</InverterDefinition>
Attributes
QName Type Fixed Default Use Annotation
Id xs:ID required
Source
<xs:element name="InverterDefinition" type="InverterDefinitionType" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Specifications for an inverter used in this design. A PvDesign may contain more than inverter make and model.</xs:documentation>
  </xs:annotation>
</xs:element>
Element InverterDefinitionType / InverterCategory
Namespace No namespace
Annotations
An optional description of the inverter's type, such as "Micro-inverter - Grid-tie," "String Inverter - Grid-tie," "Battery-based Inverter - Grid-tie/Off-grid," "Battery-based Inverter - Off-grid," "Centraal Inverter"
Diagram
Diagram
Type xs:string
Properties
content: simple
minOccurs: 0
Source
<xs:element minOccurs="0" name="InverterCategory" type="xs:string">
  <xs:annotation>
    <xs:documentation>An optional description of the inverter's type, such as "Micro-inverter - Grid-tie," "String Inverter - Grid-tie," "Battery-based Inverter - Grid-tie/Off-grid," "Battery-based Inverter - Off-grid," "Centraal Inverter"</xs:documentation>
  </xs:annotation>
</xs:element>
Element InverterDefinitionType / IsMicroInverter
Namespace No namespace
Annotations
Provides a definitive way of differentiating the inverter architecture as a String or Micro-Inverter. If TRUE, then the inverter is intended to be placed in series into an AC PV branch circuit.  All other inverters essentially conform to a string architecture.
Diagram
Diagram
Type xs:boolean
Properties
content: simple
minOccurs: 0
Source
<xs:element minOccurs="0" name="IsMicroInverter" type="xs:boolean">
  <xs:annotation>
    <xs:documentation>Provides a definitive way of differentiating the inverter architecture as a String or Micro-Inverter. If TRUE, then the inverter is intended to be placed in series into an AC PV branch circuit. All other inverters essentially conform to a string architecture.</xs:documentation>
  </xs:annotation>
</xs:element>
Element InverterDefinitionType / MppTrackerQuantity
Namespace No namespace
Annotations
The number of MPP Trackers within the inverter.
Diagram
Diagram
Type xs:integer
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<xs:element name="MppTrackerQuantity" type="xs:integer" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>The number of MPP Trackers within the inverter.</xs:documentation>
  </xs:annotation>
</xs:element>
Element InverterDefinitionType / MinMpptVoltage
Namespace No namespace
Annotations
Lower end of the inverter's Maximum Power Point Tracker DC voltage window.
Diagram
Diagram
Type xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<xs:element name="MinMpptVoltage" type="xs:double" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Lower end of the inverter's Maximum Power Point Tracker DC voltage window.</xs:documentation>
  </xs:annotation>
</xs:element>
Element InverterDefinitionType / MaxMpptVoltage
Namespace No namespace
Annotations
Higher end of the inverter's Maximum Power Point Tracker DC voltage window.
Diagram
Diagram
Type xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<xs:element name="MaxMpptVoltage" type="xs:double" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Higher end of the inverter's Maximum Power Point Tracker DC voltage window.</xs:documentation>
  </xs:annotation>
</xs:element>
Element InverterDefinitionType / MaxDcInputPower
Namespace No namespace
Annotations
Maximum PV module input power in DC watts at STC.
Diagram
Diagram
Type xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<xs:element name="MaxDcInputPower" type="xs:double" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Maximum PV module input power in DC watts at STC.</xs:documentation>
  </xs:annotation>
</xs:element>
Element InverterDefinitionType / NominalDcVoltage
Namespace No namespace
Annotations
DC voltage at normal operating conditions.
Diagram
Diagram
Type xs:integer
Properties
content: simple
minOccurs: 0
Source
<xs:element minOccurs="0" name="NominalDcVoltage" type="xs:integer">
  <xs:annotation>
    <xs:documentation>DC voltage at normal operating conditions.</xs:documentation>
  </xs:annotation>
</xs:element>
Element InverterDefinitionType / MaxDcVoltage
Namespace No namespace
Annotations
Maximum DC system voltage.
Diagram
Diagram
Type xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<xs:element name="MaxDcVoltage" type="xs:double" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Maximum DC system voltage.</xs:documentation>
  </xs:annotation>
</xs:element>
Element InverterDefinitionType / PvDcStartVoltage
Namespace No namespace
Annotations
Given in volts DC. Some inverters have a voltage point that differs from the minimum MPPT DC voltage at which it will start operation.  This is typically higher than the minimum MPPT voltage.
Diagram
Diagram
Type xs:double
Properties
content: simple
minOccurs: 0
Source
<xs:element minOccurs="0" name="PvDcStartVoltage" type="xs:double">
  <xs:annotation>
    <xs:documentation>Given in volts DC. Some inverters have a voltage point that differs from the minimum MPPT DC voltage at which it will start operation. This is typically higher than the minimum MPPT voltage.</xs:documentation>
  </xs:annotation>
</xs:element>
Element InverterDefinitionType / NominalDcCurrent
Namespace No namespace
Annotations
Nominal DC input current in amps.
Diagram
Diagram
Type xs:double
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<xs:element name="NominalDcCurrent" type="xs:double" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Nominal DC input current in amps.</xs:documentation>
  </xs:annotation>
</xs:element>
Element InverterDefinitionType / MaxDcCurrent
Namespace No namespace
Annotations
Maximum usable current (Isc) in amps.
Diagram
Diagram
Type xs:double
Properties
content: simple
minOccurs: 0
Source
<xs:element minOccurs="0" name="MaxDcCurrent" type="xs:double">
  <xs:annotation>
    <xs:documentation>Maximum usable current (Isc) in amps.</xs:documentation>
  </xs:annotation>
</xs:element>
Element InverterDefinitionType / DcTerminalQuantity
Namespace No namespace
Annotations
Number of DC terminals.
Diagram
Diagram
Type xs:integer
Properties
content: simple
minOccurs: 0
maxOccurs: 1
Source
<xs:element name="DcTerminalQuantity" type="xs:integer" minOccurs="0" maxOccurs="1">
  <xs:annotation>
    <xs:documentation>Number of DC terminals.</xs:documentation>
  </xs:annotation>
</xs:element>
Element InverterDefinitionType / DcTerminalMechanism
Namespace No namespace
Annotations
Mechanism used for the terminal, for example "Screw Compression".
Diagram
Diagram
Type xs:string
Properties
content: simple
minOccurs: 0
Source
<xs:element minOccurs="0" name="DcTerminalMechanism" type="xs:string">
  <xs:annotation>
    <xs:documentation>Mechanism used for the terminal, for example "Screw Compression".</xs:documentation>
  </xs:annotation>
</xs:element>
Element InverterDefinitionType / DcTerminalWireRange
Namespace No namespace
Annotations
Describes the range of wire sizes that the DC terminals accept (for example "10-6" would be 10AWG on the small end up to 6AWG).
Diagram
Diagram
Type xs:string
Properties
content: simple
minOccurs: 0
Source
<xs:element minOccurs="0" name="DcTerminalWireRange" type="xs:string">
  <xs:annotation>
    <xs:documentation>Describes the range of wire sizes that the DC terminals accept (for example "10-6" would be 10AWG on the small end up to 6AWG).</xs:documentation>
  </xs:annotation>
</xs:element>
Element InverterDefinitionType / IntegratedDcDisconnect
Namespace No namespace
Annotations
Describes whether any DC disconnect is integrated into the inverter (for example as "Standard," "Standard (Load break rated)," "Optional," or "None").
Diagram
Diagram
Type xs:string
Properties
content: simple
minOccurs: 0
Source
<xs:element minOccurs="0" name="IntegratedDcDisconnect" type="xs:string">
  <xs:annotation>
    <xs:documentation>Describes whether any DC disconnect is integrated into the inverter (for example as "Standard," "Standard (Load break rated)," "Optional," or "None").</xs:documentation>
  </xs:annotation>
</xs:element>
Element InverterDefinitionType / IntegratedDcDisconnectRating
Namespace No namespace
